MicroBio µ3D AutoScanner automatically, rapidly and precisely enumerates Total Viable Count (TVC) of microorganisms.

Fully automated rapid Total Viable Count (TVC) of microorganisms on SPC media plate. Example) cut vegetable mix sample

Rapid Total Viable Count (TVC) is fully aoutmated by MicroBio μ3D !

fully automated microbiological test system, MicroBio μ3D



Fully aoutomated microbiological test system, MicroBio μ3D AutoScanner  Placing a plate to Fully automated microbiological test system, MicroBio µ3D

Set SPC plates and start a test !



MicroBio µ3D automatically, rapidly and precisely enumerates Total Viable Count (TVC) of microorganisms on 100 plates at the same time while the Standard Plate Count media plates are being incubated. The example is the case of cut vegetable sample.



Accurate Viable Count for 100 plates is obtained faster when MicroBio μ3D is used since the system detects and counts colonies in microscopic level while plates are being incubated. The result count is accurate so that plates for dilution series are not required to be tested.



MicroBio µ3D based on Time-lapse Shadow Image Analysis (TSIA) is able to enumerate colonies in wide range of one to about ten thousands accurately. Therefore, one SPC plate is required to obtain standard plate count.


MicroBio μ3D rapidly enumerates TVC on cut vegetable mix sample !

Standard Plate Count (viable count) of vegetable mix purchased at a supermarket was enumerated by MicroBio μ3D.



Test System

MicroBio µ3D AutoScanner

Test Sample

Cut vegetable mix purchased at a supermarket was stomached, filtered, diluted and used for the SPC test.

Agar Media

Standard Plate Count Agar Media,
1ml pour plate

Incubation

35ºC, 48h



colony count graph and plate image of viable count of cut vegetable mix sample



The above graph with plate image can be displayed during a test. The viable count is determined at 24hr for this example.



Incubation Time

Count

Colony Count Graph

Plate Image

Count Marker





0hr





0

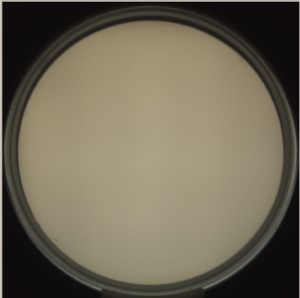

cut vegetable sample, plate image before incubation





24hr





2,348

cut vegetable sample, SPC graph at 24h

cut vegetable sample, plate image at 24h

cut vegetable sample, count marker at 24h





48hr





2,597

cut vegetable sample, SPC graph at 48h

cut vegetable sample, plate image at 48h

cut vegetable sample, SPC count marker at 48h



As the example shows, accurate colony count can be obtained from micro-colony level that can not be observed by the eye. If SPC exceeded the maximum limitation specified as test criteria, the system sends you a real time alert.
