Anaerobes are detected faster and automatically, inclusing anaerobes grow at high temperature !

Anaerobes are detected faster and automatically, inclusing anaerobes grow at high temperature !

Anaerobes are detected rapidly and automatically !

MicroBio μ3D trade mark

anaerobic conditioned plate  MicroBio μ3D rapid microbial detection system

Set anaerobic plates and start a test.



Time-lapse monitoring while incubating anaerobic conditioned plates can be performed by MicroBio µ3D system. We provide anaerobic conditioning kit that makes each plate in anaerobic condition, including a plate that a membrane filter is placed on the surface of agar media. Therefore, now, anaerobe detection is fully automated for rapid detection. Anaerobic plates are treated as same as ordinary plates so that a test can be run in mixed mode of aerobic and anaerobic.



Deoxygenating Method

An anaerobic conditioning kit produces deoxygenated condition for each agar plate, substituting oxygen with carbon dioxide inside of the plate.



anaerobic conditioning kit



Pouch Method

Anaerobe detection can be performed by incubating a pouch that contains poured thioglycolate agar media mixed with sample. Placing pouches into slots of a tray and setting the tray into MicroBio µ3D, fully automated rapid anaerobe detection can be performed.



パウチ


Thermoanaerobacter thermohydrosulfuricus Dectection

It used to take for the traditional method about one week to detect Thermoanaerobacter that causes product quality problem in food industry. Using MicroBio µ3D with anaerobic conditioned media plate, the anaerobes are detected much faster.
Clostridium thermohydrosulfuricum is a synonym of Thermoanaerobacter thermohydrosulfuricus.

Test System

MicroBio µ3D AutoScanner

Species strain

Thermoanaerobacter thermohydrosulfuricus (ATCC35045)

Agar Media

Clostridial Agar Media

Sample

Poured in round pouch

Incubation

60ºC, 48h

Detection Result

18 colonies at 48h, 16 colonies detection nearly completed at 24h



48hr

Plate Image

Count Marker

plate image of Thermoanaerobacter thermohydrosulfuricus at 48h

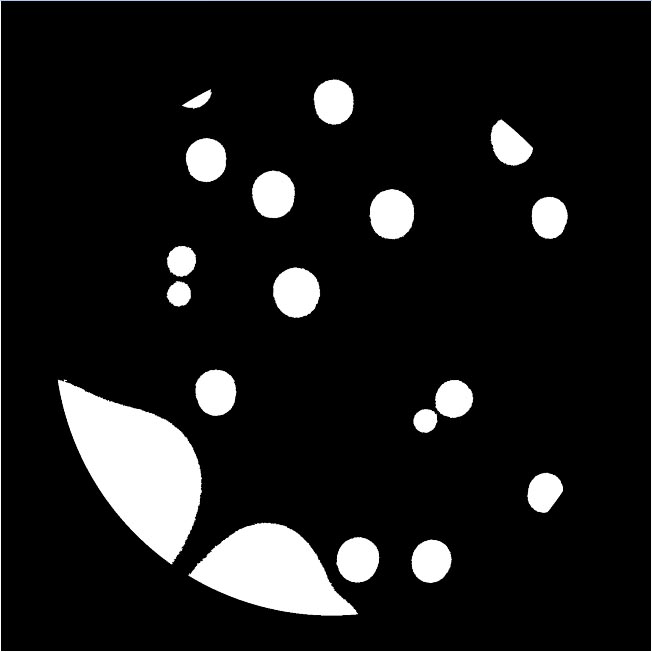

Count marker of Thermoanaerobacter thermohydrosulfuricus at48h

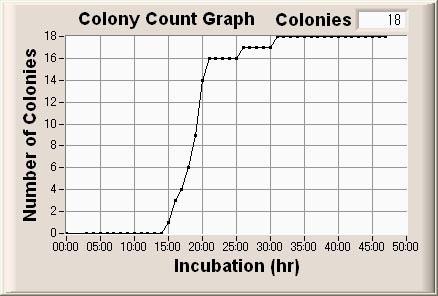

graph of Thermoanaerobacter thermohydrosulfuricus at 48h

The above graph with plate image can be displayed during a test. The automatic detection was nearly completed at 24hr for this example, detecting 16 colonies.

Thermoanaerobacter mathranii Dectection

Thermoanaerobacter mathranii is also detected by MicroBio µ3D much faster and automatically.

Test System

MicroBio µ3D AutoScanner

Species strain

Thermoanaerobacter mathranii (DSM11426)

Agar Media

Clostridial Agar Media

Sample

Poured in round pouch

Incubation

60ºC, 64h

Detection Result

65 colonies at 50h, 64 colonies detection nearly completed at 41h



48hr

Plate Image

Count Marker

sample pouch image of Thermoanaerobacter mathranii

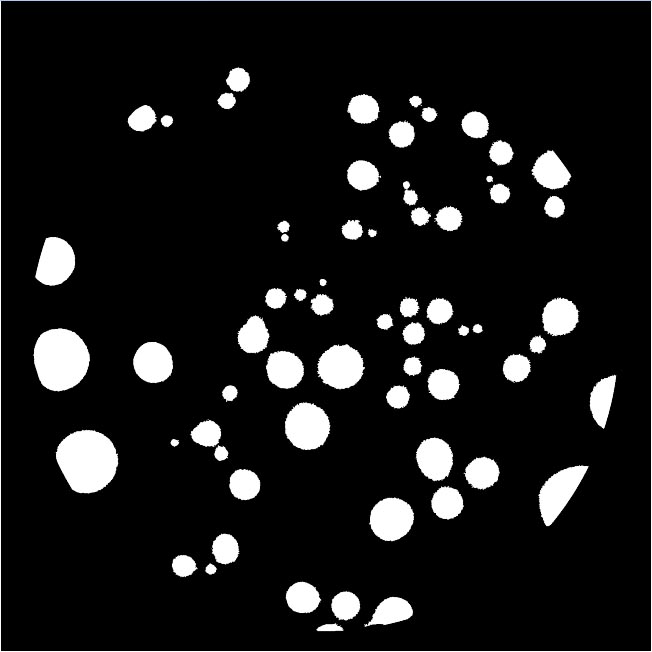

Count marker of Thermoanaerobacter mathranii

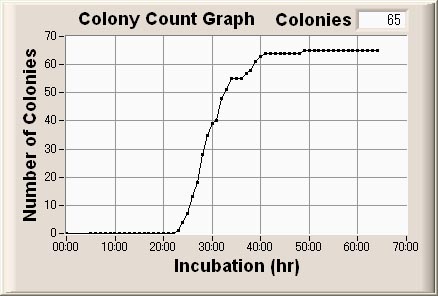

graph of Thermoanaerobacter mathranii

The above graph with plate image can be displayed during a test. The automatic detection was nearly completed at 41hr for this example, detecting 64 colonies.
